Sofle v2

keeb

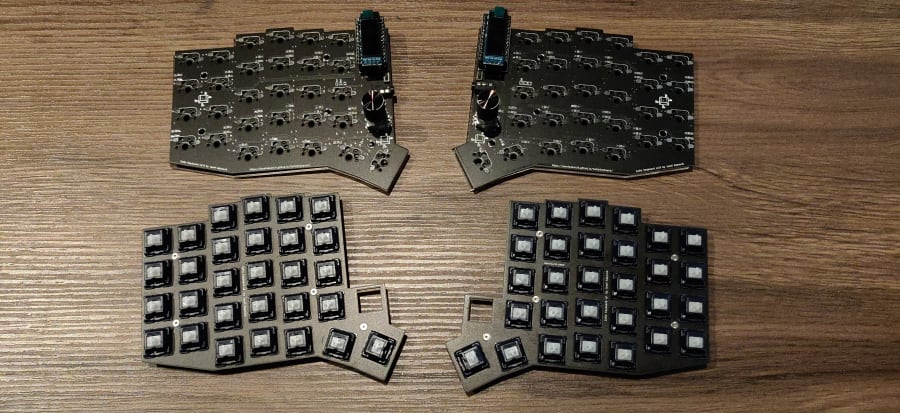

The SofleKeyboard is a 6×4+5 keys column-staggered split keyboard with encoder support. Based on the Lily58, Corne, and Helix keyboards.

Build components

Switches: AEBoard Naevy v1 (lubed Krytox 205g0)

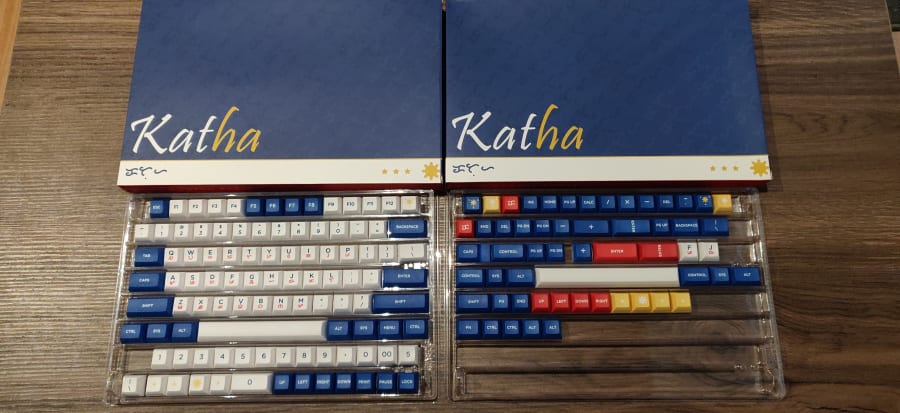

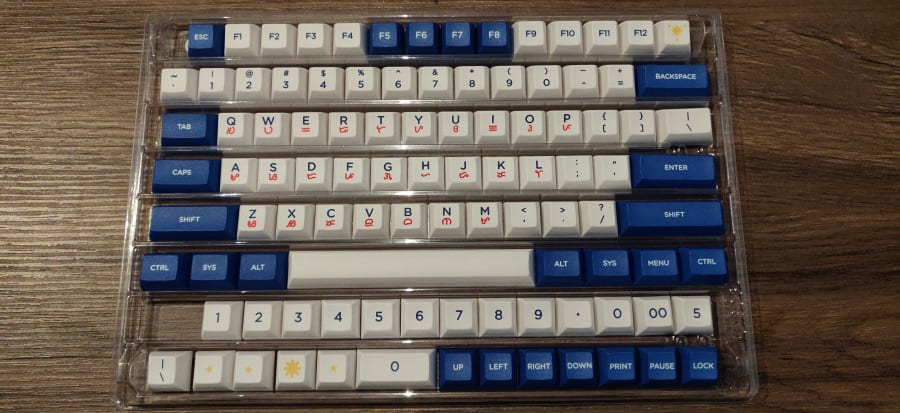

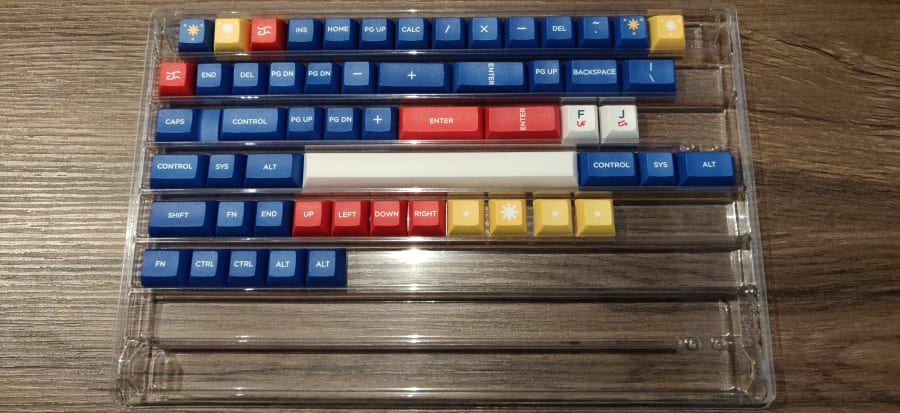

Keycaps: Katha Baybayin (KAT)

Firmware

QMK and Via compatible keymap with focus on adding a standard navigation cluster layer plus some Vim-inspired features e.g. soft escape (Esc when held, Ctrl when tapped), using h, j, k, l as arrow keys.

Layout

View in Keyboard Layout Editor

SofleKeyboard custom keymap

Features

  • Via support
  • Mode for soft escape (Esc when tapped, Ctrl when held)
  • Vim-style navigation (h j k l as arrow keys)
  • Mode for standard navigation cluster
  • Toggling between layers when encoders are pressed
  • Encoder controls (additional layer/s when Ctrl or Shift is held)

Encoder controls

modifierencoderaction
N/ALeftMouse wheel L/R
N/ARightPgUp/PgDn
CtrlLeftVolUp/VolUp
CtrlRightBrightness Up/Dn
ShiftLeftMouse cursor L/R
ShiftRightMouse cursor Up/Dn
